01. INTRO

Project Description

client: Diplomat Dental Solutions

work: Styling, 3D CAD model, Visualization

year: 2023

Foot Controller

Premium accessories for Diplomat Dental Pro and One Dental treatment units.

We have created a new foot control design to easily control dental assemblies. Combining a lever, and top and side buttons will allow for an optimal ergonomic environment for the dentist. The durable design visually synchronized with the dental assemblies will create an optimal working environment and easy operation of the dental device.

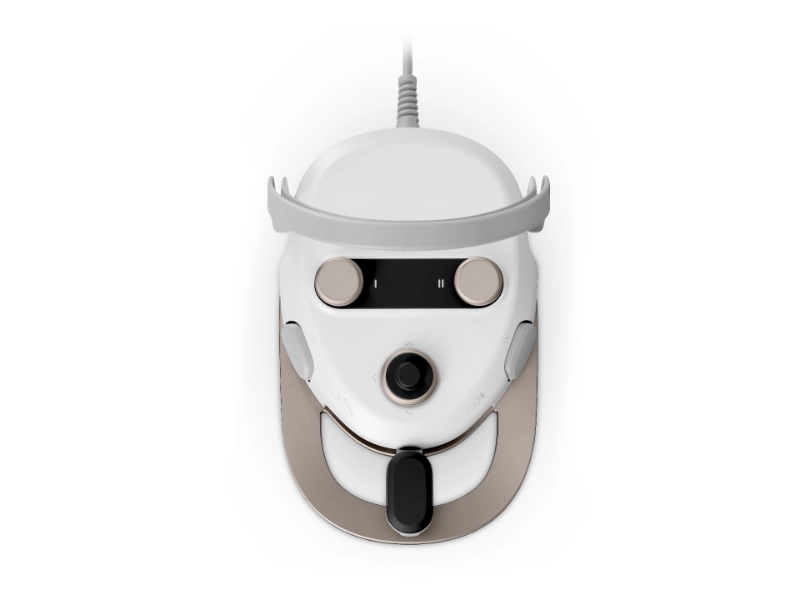

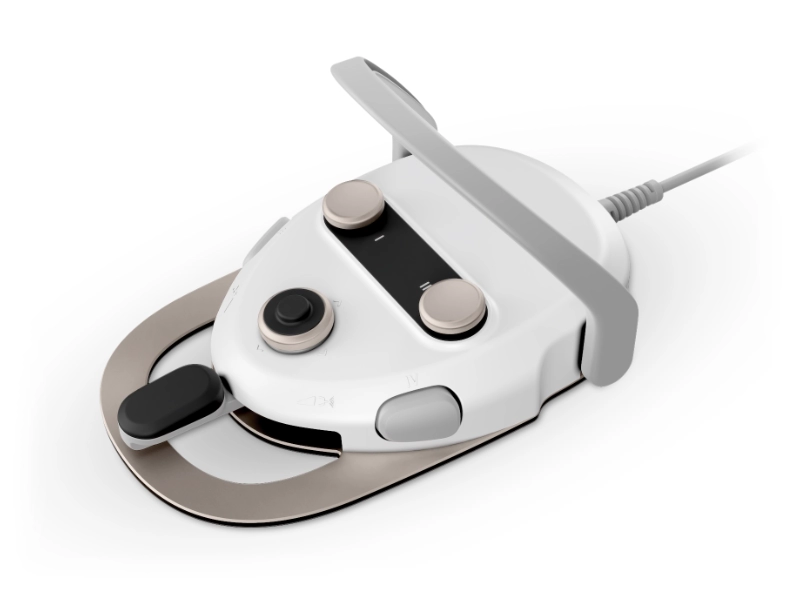

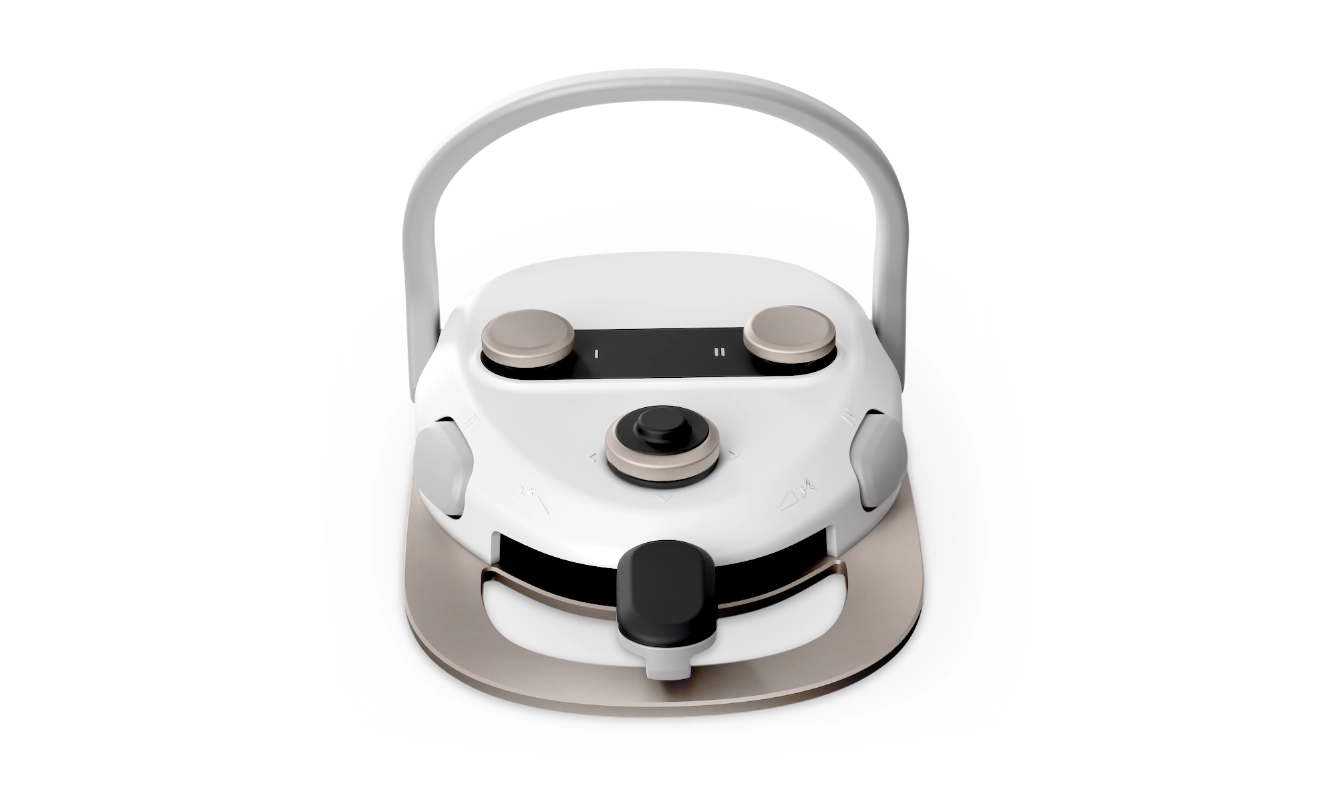

Dilomat Dental Foot Controller Main image 01_Design by Werkemotion

02. Product Range

The new design language was applied to a whole range of products in the Diplomat Dental portfolio

Model Pro

500 & 700 Carried

Diplomat Dental_Model PRO Carried_Main image_Design by Werkemotion
Model Pro

600 & 800 Lifted

Diplomat Dental_Model PRO Lifted_Main image 01_Design by Werkemotion
Model One

100 Carried

Diplomat Dental_Model ONE 100 Carried_Main image 01_Design by Werkemotion
Model One

200 Lifted

Diplomat Dental_Model ONE 200 Lifted_Main image_Design by Werkemotion
Stool

For Dentists

Dilomat Dental Dental Stool Side Main image 03_Design by Werkemotion

03. Design Process

Development

Diplomat Dental unit series is based on a geometrical minimalistic design language, unified across the whole product portfolio with very well-balanced proportions.

01.

Concept Stage

Create new design language of full range of Dental Accessories. In concept design stage sketches are modeled using polygonal modeling. These non-manufacturing models serve for comunication of new design to client and also for initial conversation with engeneering team.

Dilomat Dental Foot Controller Sketch Development Studio 01_Design by Werkemotion
Dilomat Dental Foot Controller Sketch Development 01_Design by Werkemotion
Dilomat Dental Foot Controller Sketch Development Studio 03_Design by Werkemotion
02.

Prototyping Stage

WERKEMOTION Studio prepared manufacturing data for all visible plastics, metal or upholstered parts.
In cooperation with Diplomat Dental engeneering team we ensured stability, ergonomy and good kinematics of the unit.

Dilomat Dental Foot Controller 3D Development 04_Design by Werkemotion
Dilomat Dental Foot Controller 3D Development 05_Design by Werkemotion
Dilomat Dental Foot Controller 3D Development 06_Design by Werkemotion

04. Details

Design Process

To ensure durability and precise control we designed the buttons to be nickel-plated and added rubberized surfaces for better grip.

Dilomat Dental Foot Controller Detail 05_Design by Werkemotion

05. Before & After

It's not just about nice thing

Geometrical minimalistic design language, unified across the whole product portfolio

Improved ergonomy and comfort. Developed in cooperation with practising dentists

New Controller
Old Controller

06. Shape Registration

Legal Protection

Our Legal Department covers the process of obtaining a shape registration of Diplomat Dental Foot Controller and also all individual products.

Thanks to that are these devices and all development costs protected by European Union Intellectual Property Office.

Dilomat Dental Foot Controller SHAPE REGISTRATION_Design by Werkemotion
