Automotive design

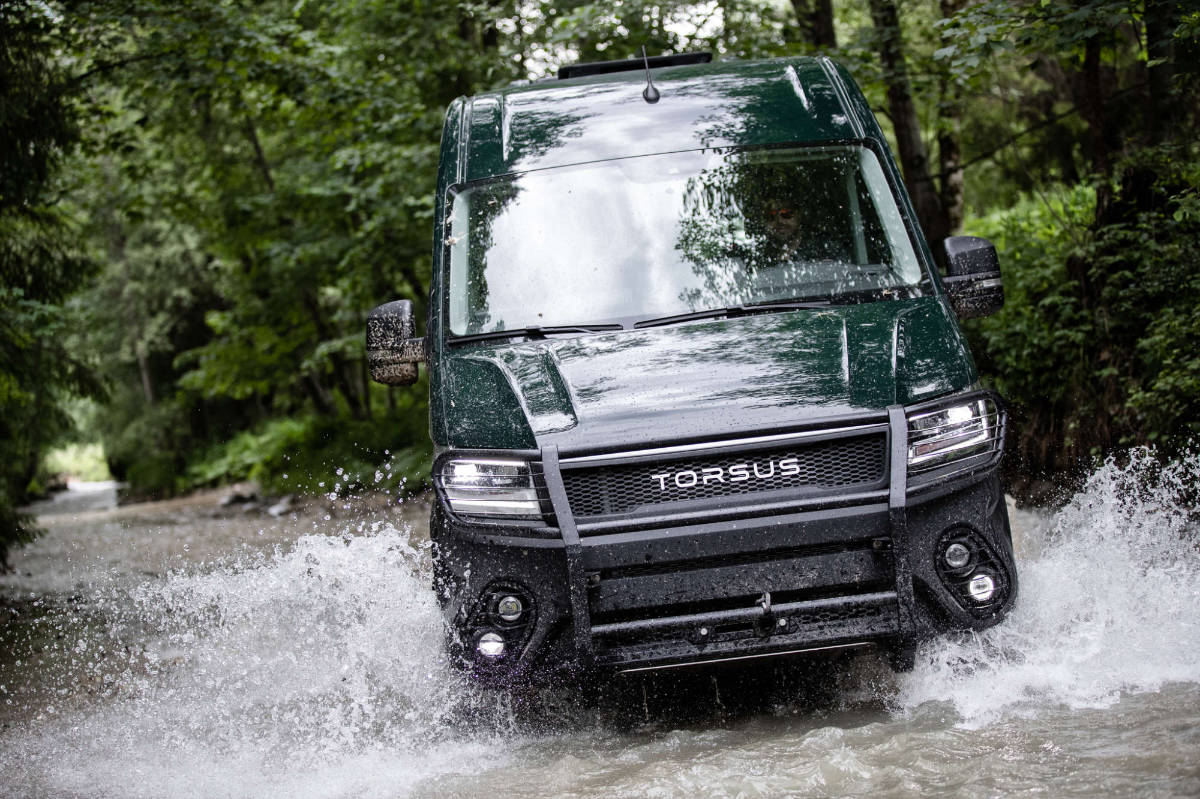

TORSUS TERRASTORM

World’s most capable 4×4 minibus



The all-new TORSUS TERRASTORM is designed and engineered with maximum 4×4 off-road capability at its core. Based on a Volkswagen Crafter / MAN TGE chassis, the uncompromising TERRASTORM is designed to conquer the challenges of transporting personnel and equipment across the world’s harshest terrain. Capable of carrying up to 19 occupants and with an impressive 290mm of ground clearance, TERRASTORM is built to get you where you need to go. With a varied range of modifications, the TERRASTORM is there to keep you moving no matter what. It makes the impossible – possible. We were asked to keep Torsus identity and design new front-end (bumper, grill) and plenty of off-road Accessories (bullbar, side-steps, rear door ladder, spare tire rack, roof rack, lights covers etc.).

TORSUS TERRASTORM Video

COACH 4×4

CARGO 4×4

AMBULANCE 4×4


Technical specification
Engine:

• Capacity:. 177 h.p./130 kW at 3600 rpm
• Type: diesel bi-turbo, Common rail
• Torque: 410 Nm at 1500-2000 rpm
• Emission level – EU6 CI
• Fuel consumption
o Combined: 9.0 l /100 km
o city: 9.9 l/100 km
o highway: 8.5 l/100 km
• CO2-emissions, combined: 236 g/km


Dimensions:
• Wheelbase: 3640 mm
• Body length: 6000 mm
• Body width: 2065 mm
• Height: 2880 mm
• Approach angle: 26 degrees
• Departure angle: 20 degrees
• Clearance: 290 mm
• Folding depth standard/increased: 690 mm/820 mm

Task

Design The world's most capable 4x4 minibus based on VW Crafter

  • Skills

    Design, 3D modeling, Rendering, Production data

  • Client

    Torsus, Pulsar Expo s.r.o.

  • Tags

    4x4 bus, minibus, off-road, terrastorm, Torsus, WERKEMOTION
